Diaphragm pumps are one of the most versatile and widely used types of positive displacement pumps in various industries. Known for their efficiency, reliability, and ability to handle diverse applications, diaphragm pumps have become essential in processes that involve the transfer of fluids, chemicals, and even solids. But what exactly is the purpose of a diaphragm pump, and why is it preferred in so many sectors? This article explores the purpose, functionality, and benefits of diaphragm pumps, shedding light on their significance in modern industrial and commercial settings.

‍

What is a Diaphragm Pump?

A diaphragm pump, also known as a membrane pump, is a type of positive displacement pump that uses a reciprocating diaphragm to move fluids. These pumps are designed to handle a wide range of substances, from highly viscous liquids to abrasive slurries, with precision and efficiency. The pump's versatility stems from its unique design, which isolates the fluid being pumped from moving parts, preventing contamination and wear.

‍

How Does a Diaphragm Pump Work?

The operation of a diaphragm pump is based on the reciprocating action of a flexible diaphragm. Here’s how it works:

1. Compression and Expansion: The diaphragm, which is typically made of elastomeric materials like rubber or Teflon, is mechanically or pneumatically flexed. This creates a vacuum that draws fluid into the pump chamber during the suction stroke.
2. Check Valves: Non-return (check) valves control the flow of the fluid, ensuring it moves in only one direction.
3. Discharge: During the compression stroke, the diaphragm pushes the fluid out of the chamber and into the discharge line.

This simple yet effective mechanism allows diaphragm pumps to handle a variety of fluids with ease, including corrosive chemicals, viscous liquids, and even solids-laden slurries.

‍

The Purpose of a Diaphragm Pump

The primary purpose of a diaphragm pump is to transfer fluids safely, efficiently, and reliably. Its unique design and operational characteristics make it suitable for several key applications:

1. Chemical Transfer

Diaphragm pumps are widely used for transferring aggressive and corrosive chemicals in industries such as petrochemicals, pharmaceuticals, and water treatment. The non-metallic construction of the diaphragm and internal components ensures compatibility with harsh substances, preventing damage and contamination.

2. Handling Abrasive Slurries

In mining, construction, and ceramics, diaphragm pumps are used to handle abrasive slurries with high solid content. Their ability to pump particulate-laden materials without clogging or wear makes them indispensable for these industries.

3. Food and Beverage Applications

Diaphragm pumps are often used to transfer food-grade liquids such as sauces, syrups, and dairy products. Their sanitary design, featuring smooth surfaces and non-toxic materials, ensures compliance with strict hygiene standards.

4. Dewatering and Waste Management

These pumps play a crucial role in dewatering operations, where they remove water from construction sites, flooded areas, or mining pits. They are also used in wastewater treatment plants to pump sludge, effluents, and other waste materials.

5. Metering and Dosing Applications

Diaphragm pumps excel in applications that require precise fluid delivery, such as dosing chemicals or injecting additives into a system. Their ability to maintain consistent flow rates ensures accuracy and efficiency.

6. Oil and Gas Industry

In the oil and gas sector, diaphragm pumps are used for transferring drilling muds, refining byproducts, and other petroleum-based fluids. Their robust design ensures reliable performance in demanding conditions.

‍

Key Features of Diaphragm Pumps

Diaphragm pumps are purpose-built to address specific challenges in fluid handling. Here are the key features that contribute to their functionality and widespread use:

1. Self-Priming Capability

Diaphragm pumps can create a vacuum that allows them to self-prime, making them ideal for applications where the pump is located above the fluid source.

2. Ability to Run Dry

Unlike many other pump types, diaphragm pumps can run dry without causing damage. This makes them suitable for situations where the fluid supply might be inconsistent.

3. High Chemical Compatibility

The use of materials like Teflon, Viton, or stainless steel enables diaphragm pumps to handle a wide range of chemicals and aggressive substances.

4. Versatility in Fluid Types

Diaphragm pumps can handle liquids, gases, and solids with ease, making them versatile for industrial and commercial use.

5. Low Maintenance Requirements

Since the fluid being pumped does not come into direct contact with moving parts, diaphragm pumps experience less wear and tear, reducing maintenance costs.

6. Explosion-Proof Options

For industries dealing with flammable or volatile materials, diaphragm pumps can be configured to meet explosion-proof standards, ensuring safety.

Advantages of Using Diaphragm Pumps

The design and features of diaphragm pumps offer several advantages over other pump types. These include:

1. Durability and Reliability

Diaphragm pumps are designed to withstand challenging environments, including abrasive and corrosive conditions. This makes them highly reliable for long-term use.

2. Energy Efficiency

Thanks to their simple mechanical or pneumatic operation, diaphragm pumps consume less energy compared to other pump types, reducing operating costs.

3. Safe for Sensitive Fluids

The diaphragm’s isolation of the fluid prevents contamination, making these pumps suitable for handling sensitive or hazardous substances.

4. Portability

Many diaphragm pumps are lightweight and portable, making them easy to transport and deploy in different locations.

‍

Common Types of Diaphragm Pumps

Diaphragm pumps come in various configurations to meet specific operational needs. Some of the most common types include:

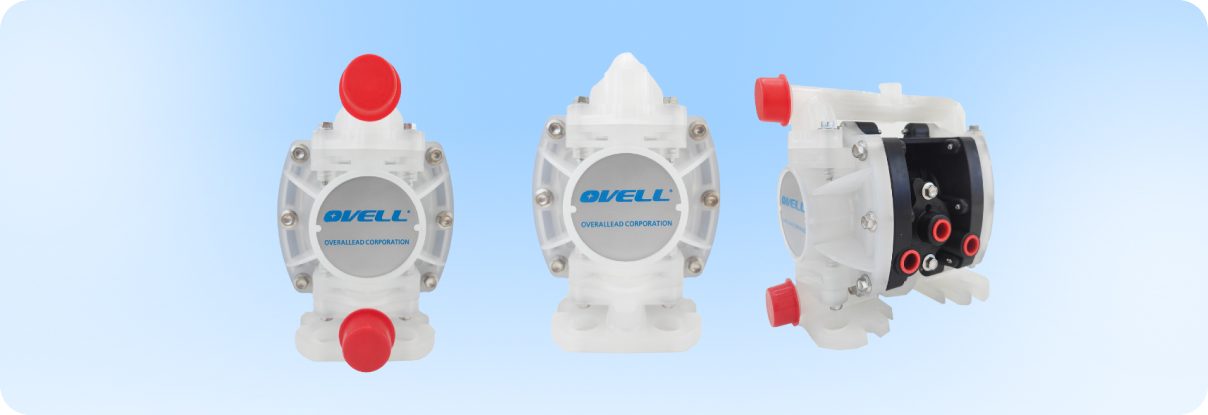

1. Air-Operated Double Diaphragm (AODD) Pumps

These pumps use compressed air to operate and are widely used for their simplicity, reliability, and ability to handle diverse fluids.

2. Electric Diaphragm Pumps

Electric diaphragm pumps are powered by electric motors, offering precise control and energy efficiency.

3. Hydraulic Diaphragm Pumps

These pumps use hydraulic fluid to actuate the diaphragm, providing higher pressure capabilities and smooth operation.

‍

Applications Across Industries

The purpose of diaphragm pumps extends across numerous industries, highlighting their versatility and importance:

1. Industrial Manufacturing

From chemical production to metal processing, diaphragm pumps are used to move chemicals, coolants, and other process fluids efficiently.

2. Agriculture

Farmers rely on diaphragm pumps for spraying pesticides, irrigation, and transferring fertilizers. Their ability to handle various chemicals makes them invaluable in agricultural settings.

3. Automotive and Aviation

In these industries, diaphragm pumps are used for transferring fuels, lubricants, and other fluids required for vehicle and aircraft maintenance.

4. Pharmaceuticals and Cosmetics

These pumps play a critical role in producing medicines, creams, and other products, ensuring precision and hygiene.

‍

Maintenance and Troubleshooting of Diaphragm Pumps

While diaphragm pumps are low-maintenance, regular checks and servicing can prolong their lifespan and enhance performance.

Maintenance Tips:

• Inspect diaphragms regularly for wear or damage.
• Check valves for proper operation and clean them if necessary.
• Replace worn-out seals and gaskets to prevent leaks.

Troubleshooting Common Issues:

• Reduced Flow Rate: Check for clogged valves or air leaks.
• Leaking Fluid: Inspect the diaphragm for tears or punctures.
• No Suction: Ensure that the pump is properly primed and check the inlet line for obstructions.
