Diaphragm pumps are widely used across industries due to their versatility, efficiency, and reliability in handling various fluids. Among them, electric diaphragm pumps and air-operated diaphragm pumps (AODD pumps) stand out as two of the most commonly used types. While both share similar working principles, they differ significantly in their power source, applications, maintenance, and efficiency.

In this article, we’ll explore the key differences between electric diaphragm pumps and air diaphragm pumps, helping you determine the best choice for your specific needs.

‍

1. Understanding Diaphragm Pumps

A diaphragm pump is a type of positive displacement pump that uses a flexible diaphragm to move fluids. It works by alternately expanding and contracting the diaphragm to create suction and discharge cycles. These pumps are widely used for transferring abrasive, viscous, and corrosive liquids in industries such as chemical processing, food & beverage, pharmaceuticals, and wastewater treatment.

There are two primary types of diaphragm pumps:

• Electric diaphragm pumps (mechanically or hydraulically driven)
• Air-operated double diaphragm (AODD) pumps

Each of these types has distinct advantages and limitations.

‍

2. What is an Electric Diaphragm Pump?

An electric diaphragm pump is powered by an electric motor that drives the diaphragm mechanism. These pumps use either a mechanical linkage or hydraulic actuation to move the diaphragm back and forth.

Key Features of Electric Diaphragm Pumps

✔️ Uses an electric motor as a power source
✔️ Provides steady and controlled fluid flow
✔️ Suitable for high-pressure applications
✔️ Efficient in energy consumption
✔️ Less noisy compared to air-driven pumps

‍How It Works

1. The electric motor powers a crankshaft or hydraulic piston, which moves the diaphragm.
2. As the diaphragm moves, it creates a vacuum that pulls fluid into the pump chamber.
3. On the return stroke, the diaphragm pushes the fluid out through the discharge valve.

‍Applications

• Water and chemical dosing
• Oil and gas industries
• Industrial fluid transfer
• Agriculture and irrigation systems

‍

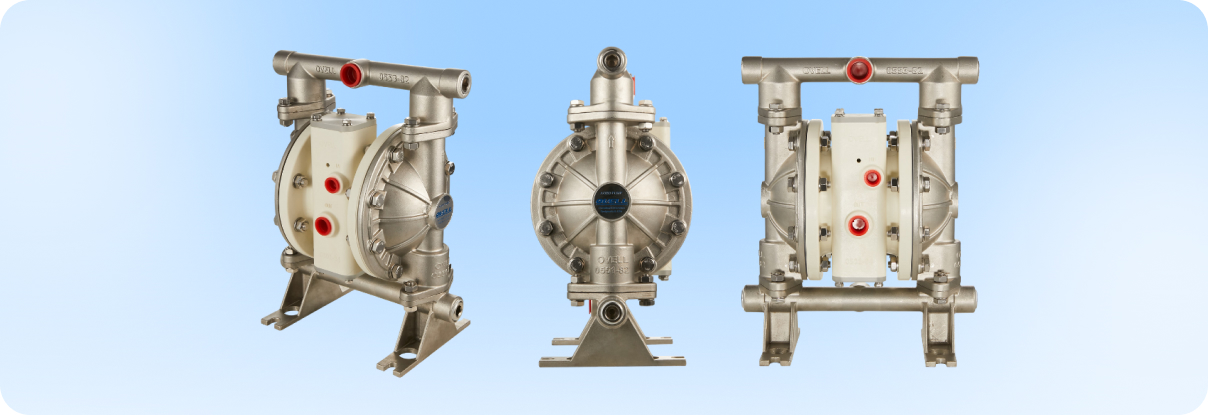

3. What is an Air-Operated Diaphragm Pump (AODD)?

An air diaphragm pump (or AODD pump) is driven by compressed air instead of an electric motor. These pumps have two diaphragms connected by a central air valve, which alternates the pressure between the chambers to create fluid movement.

‍

Key Features of Air Diaphragm Pumps

✔️ Uses compressed air as a power source
✔️ Self-priming and can run dry without damage
✔️ Excellent for handling viscous, abrasive, or corrosive fluids
✔️ Explosion-proof design, suitable for hazardous environments
✔️ Can operate without electricity, making them ideal for remote locations

How It Works

1. Compressed air is directed to one side of the diaphragm, pushing it outward.
2. This movement creates suction, drawing fluid into the chamber.
3. The air shifts to the opposite diaphragm, pushing fluid out through the discharge port.
4. This cycle continues, enabling continuous fluid transfer.

Applications

• Chemical and pharmaceutical industries
• Food and beverage processing
• Mining and construction
• Wastewater treatment
• Paints, coatings, and adhesives transfer

‍

4. Key Differences Between Electric and Air Diaphragm Pumps

‍

‍

5. Choosing Between an Electric and Air Diaphragm Pump

Selecting the right pump depends on various factors, including application, environment, budget, and safety requirements.

‍

When to Choose an Electric Diaphragm Pump

✅ When consistent flow rate and precise dosing are required
✅ If electricity is readily available and more cost-effective than compressed air
✅ For higher-pressure applications that require a steady flow
✅ If energy efficiency is a priority

Best Suited For:

• Industrial fluid transfer
• Dosing and metering systems
• Agriculture and irrigation

‍

When to Choose an Air-Operated Diaphragm Pump

✅ If you need a pump that can run dry without damage
✅ When working in explosive or hazardous environments
✅ For handling abrasive, viscous, or shear-sensitive fluids
✅ If portability and flexibility in operation are necessary

Best Suited For:

• Chemical and hazardous fluid handling
• Mining and construction sites
• Food, beverage, and pharmaceutical industries

‍

6. Pros and Cons of Each Pump Type

‍

Electric Diaphragm Pumps

✅ Pros:
✔️ Energy-efficient
✔️ Quiet operation
✔️ Steady, controlled flow
✔️ Handles high-pressure applications

❌ Cons:
⛔ Requires electrical power
⛔ Not ideal for hazardous environments
⛔ Limited self-priming ability

‍

Air-Operated Diaphragm Pumps

✅ Pros:
✔️ Explosion-proof and safe for hazardous areas
✔️ Can run dry without damage
✔️ Self-priming and highly versatile
✔️ Portable and easy to install

❌ Cons:
⛔ Higher energy costs due to compressed air usage
⛔ Pulsating flow, which may require dampeners
⛔ Noisier compared to electric pumps

‍

7. Conclusion: Which Pump is Right for You?

Both electric diaphragm pumps and air-operated diaphragm pumps offer unique advantages and are suitable for different applications.

• If energy efficiency, steady flow, and precision are your priorities, an electric diaphragm pump is the best choice.
• If you need a versatile, explosion-proof, and self-priming pump that can handle abrasive or viscous fluids, an AODD pump is the better option.

Ultimately, the best pump depends on your specific application, operating environment, and budget. By understanding the key differences, you can make an informed decision and optimize your pumping system for maximum efficiency.

‍

FAQs

1. Can an air-operated diaphragm pump run continuously?

Yes, but it depends on the air supply. Continuous operation requires a consistent supply of compressed air, and maintenance may be needed to prevent wear.

2. Are electric diaphragm pumps suitable for hazardous environments?

Not always. Standard electric diaphragm pumps are not explosion-proof, but special explosion-proof models are available for hazardous areas.

3. What type of diaphragm pump is best for chemical transfer?

Both types work well, but air-operated diaphragm pumps are preferred for highly corrosive or volatile chemicals due to their explosion-proof design.

4. Do air diaphragm pumps require a lubricant?

No, AODD pumps do not require lubrication, making them low-maintenance and reducing the risk of contamination.

5. Can an electric diaphragm pump handle high-viscosity fluids?

Yes, but air diaphragm pumps are generally better suited for thicker, more abrasive fluids due to their robust design.

6. How do I improve the efficiency of an air diaphragm pump?

Using a properly sized air compressor, installing pulsation dampeners, and maintaining the air supply system can improve efficiency.

‍
