Introduction
Double diaphragm pumps (DDPs) are widely used in industrial applications due to their versatility, reliability, and ability to handle a variety of fluids, including abrasive, viscous, and corrosive substances. However, one of the most common concerns when selecting a pump is efficiency. Understanding the efficiency of a double diaphragm pump requires analyzing its energy consumption, fluid-handling capabilities, operational factors, and ways to optimize its performance.
In this article, we will explore how double diaphragm pumps function, what affects their efficiency, and how they compare to other types of pumps. We will also provide best practices for improving their performance in industrial settings.

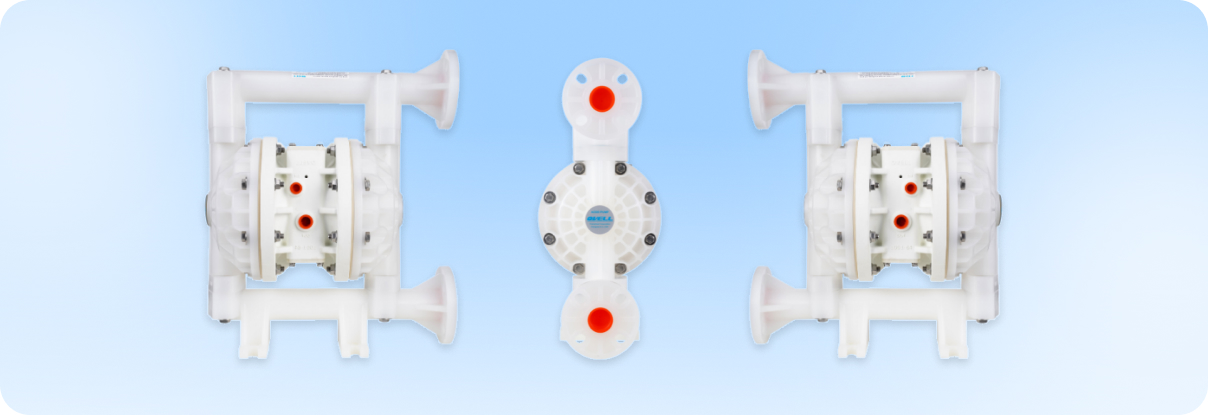

Understanding Double Diaphragm Pumps
A double diaphragm pump is a type of positive displacement pump that uses two flexible diaphragms to move fluid through a pumping chamber. These diaphragms expand and contract, creating a vacuum that pulls liquid in and then pushes it out through check valves.
Most DDPs are air-operated (AODD pumps), meaning they rely on compressed air to power the diaphragms. Some models are electrically operated (EODD pumps), but air-driven models are more common due to their explosion-proof nature and ability to handle hazardous fluids.
How Does a Double Diaphragm Pump Work?
- Compressed air enters one of the air chambers, pushing the first diaphragm.
- This movement displaces the fluid in the pumping chamber and forces it out.
- Simultaneously, the second diaphragm moves in the opposite direction, creating suction that draws new fluid into the chamber.
- This alternating motion continues, ensuring a continuous and controlled pumping process.
How Efficiency is Measured in Double Diaphragm Pumps
Efficiency in pumping systems is measured using different metrics, including:
- Flow Rate (GPM or LPM) – The volume of fluid moved per unit of time.
- Pressure Output (PSI or bar) – The force at which the fluid is pushed.
- Air Consumption (SCFM or Nm³/hr) – The amount of compressed air required to operate the pump.
- Energy Efficiency Ratio – The ratio of fluid output to the energy input.
A high-efficiency diaphragm pump delivers maximum fluid movement with minimal air or electrical energy consumption.
Factors Affecting the Efficiency of a Double Diaphragm Pump
The efficiency of a double diaphragm pump is influenced by multiple factors:
1. Air Pressure and Air Supply Quality
- AODD pumps rely on compressed air to function, but excessive air pressure leads to wasted energy.
- Poor air supply (moisture or contamination) reduces pump performance.
- Using regulated, dry air enhances efficiency.
2. Pump Material and Design
- Choosing the right diaphragm material (Teflon, Santoprene, Buna-N) affects efficiency, especially with abrasive or corrosive fluids.
- Optimized valve and chamber design can reduce resistance and energy waste.
3. Fluid Characteristics
- Viscous fluids require more power to move, reducing efficiency.
- Solids and abrasives increase wear and lower long-term efficiency.
- Using the correct pump size ensures smooth operation.
4. Cycle Rate and Stroke Length
- Running the pump at optimal cycle rates reduces air consumption.
- Shorter strokes at higher speeds increase wear, while longer strokes improve efficiency.
5. Maintenance and Wear
- Leaking diaphragms lead to energy loss and inefficiencies.
- Regularly inspecting valves, seals, and diaphragms maintains optimal performance.
- Using proper lubrication and clean air filters prolongs pump life.
Comparing Double Diaphragm Pumps to Other Pump Types
| Pump Type |
Efficiency |
Advantages |
Disadvantages |
| Double Diaphragm Pump |
Moderate (depends on air consumption) |
Self-priming, runs dry, handles various fluids |
Higher air consumption |
| Centrifugal Pump |
High (for low-viscosity fluids) |
Energy-efficient, good for continuous flow |
Can’t handle high-viscosity or solids |
| Peristaltic Pump |
Moderate-High |
Handles abrasive and viscous fluids |
Tubing needs frequent replacement |
| Piston Pump |
High |
High pressure, efficient for precise applications |
Not ideal for high-viscosity fluids |
While centrifugal pumps are more energy-efficient for thin liquids, double diaphragm pumps outperform in applications requiring self-priming, dry-running capabilities, and handling thick or hazardous fluids.
How to Improve the Efficiency of a Double Diaphragm Pump
To maximize the efficiency of an AODD pump, follow these best practices:
1. Optimize Air Pressure
- Set air pressure to the minimum required level.
- Use air regulators and filters to ensure clean and dry air.
- Consider energy-saving air motors for better efficiency.
2. Select the Right Pump Size
- A pump that is too large wastes energy, while a small pump may be overworked.
- Match flow rate and pressure requirements to pump capacity.
3. Use the Right Diaphragm Material
- Teflon or Viton for corrosive chemicals.
- Santoprene or Buna-N for general applications.
- Choosing the correct material prevents unnecessary wear and increases longevity.
4. Reduce Air Consumption
- Install an air exhaust muffler to optimize back pressure.
- Use pulse dampeners to smooth flow and reduce energy use.
5. Maintain Regularly
- Inspect diaphragms, valves, and seals for leaks.
- Replace worn components to prevent efficiency loss.
- Ensure proper lubrication and cleaning of air lines.
Due to their efficiency and versatility, double diaphragm pumps are widely used in:
- Handles corrosive and hazardous chemicals safely.
- Prevents contamination with sealed, leak-proof design.
2. Food and Beverage Industry
- Approved for sanitary applications (FDA-compliant materials).
- Pumps thick sauces, syrups, and dairy products efficiently.
- Transfers sludge, chemicals, and wastewater.
- Self-priming function allows operation in variable conditions.
4. Oil and Gas Industry
- Safely moves fuels, lubricants, and drilling fluids.
- Resistant to explosive environments.
5. Paint and Coatings
- Can handle high-viscosity fluids and pigments.
- Prevents contamination and provides precise dispensing.
FAQs About Double Diaphragm Pump Efficiency
1. Are double diaphragm pumps energy-efficient?
They are moderately efficient, but air consumption can be high. Proper pressure regulation and maintenance improve efficiency.
2. How long do double diaphragm pumps last?
With proper care, they can last 5–10 years or more.
3. Can they handle solids and abrasives?
Yes, they are designed for high-viscosity, abrasive, and even solid-laden fluids.
4. What is the main disadvantage of AODD pumps?
High air consumption, which can be costly if not managed properly.
5. Can they run dry?
Yes, they can self-prime and run dry without damage.
Conclusion
Double diaphragm pumps are efficient for specific applications, particularly those requiring self-priming, the ability to run dry, and handling of harsh chemicals or solids. While air consumption can impact efficiency, proper pressure regulation, maintenance, and pump selection significantly improve performance.
By optimizing air pressure, selecting the right materials, and performing regular maintenance, industries can enhance the efficiency and longevity of their double diaphragm pumps, reducing operational costs and improving reliability.
